PMA and STC Offerings

As North America’s largest independent MRO, we understand our customers need for parts with lower cost, reduced lead times and improved reliability offered with uncompromising quality.

PARTS MANUFACTURER
APPROVAL (PMA)

A searchable list of our PMA and STC Offerings is located below.

Our PMA’s

Our ATS PMA Portfolio
Consists of More than 100 Parts













   Adam Deller
    Director of Business Development
    Phone: +1 469 758 9616

   AOG Service Contact:
    ATS Ranger Sales Team
    Lewisville, TX 75067 USA
    Phone: +1 972 245 6699

SUPPLEMENTAL TYPE
CERTIFICATE (STC)

CargoTek
Cargo Bay Protection Solution

CargoTek® Cargo Bay Protection by ATS eliminates cargo-related gate delays and reduces cargo bay maintenance costs.  Watch our short video to learn more!

FOD Protection Intake Plug

Check out our video above which features the 30 second installation of our FOD Protection Intake Plug. It protects the engine and engine components from damage due to debris and inclement weather.

Cargo Door Armor

The Cargo Door Armor was designed in collaboration with ATS customers to provide protection for Boeing 737 Series aircraft cargo doors. The cargo door swings inward which can lead to inadvertent damage when loading and unloading baggage and cargo from the aircraft.

EverLatch Cargo Door Latch Assembly

Our EverLatch Cargo Door Latch (CDL) Assembly is a solution to a long-standing cargo door latch problem where operators experience fuselage skin and cargo door housing damage from sheered off nylon bumpers.

Search for PMA Parts and STC Offerings

PDF Link ATA Chapter Part Name PMA Supplement Number OEM Part Number ATS Part Number NHA Part Number Aircraft Application
View57Adjust Link Assembly (#3/#6 INBD, TE)024113A9305-5113A9305-5ATSMRO113A9300-XXXBoeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER, 737-8
View53AFT Cargo Compartment Floor 140CF021453A2610-2453A2610-2ATSMRO453A2600Boeing 737-700
View53Aft Cargo Pit Shield021146A8127U12146A8127U12ATSMRO146A0081-9/10Boeing 737-600, 737-700, 737-800, 737-900, 737-900ER
View53Aft Cargo Pit Shield021146A8127U1146A8127U1ATSMRO146A0081-1/2/3/4/5/6Boeing 737-600, 737-700, 737-700C, 737-800, 737-900
View53Aft Cargo Pit Shield021146A8127Y10146A8127Y10ATSMRO146A0081-9/10Boeing 737-600, 737-700, 737-800, 737-900, 737-900ER
View53AFT Reveal Assembly015146A9403-237146A9403-237ATSMROC23302Boeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER, 737-8
View25Air Outlet020214A1118-12214A1118-12ATSMRO232A1603-X / 002A0006-130Boeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER, 737-8
View27Attach Beam Assembly023113A9304-1113A9304-1ATSMRO113A9300-XBoeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER, 737-8
View25Attachment Block Assembly016C23302-341-003C23302-341-003ATSMROC23302Boeing 737-300, 737-500, 737-600, 737-700, 737-700C
View25Attachment Block Assembly016C23302-351-007C23302-351-007ATSMROC23302Boeing 737-300, 737-500, 737-600, 737-700, 737-700C
View52Ball Clutch Shaft005732-14281732-14281ATS732-14280-01/-02/-03Boeing 757-200, 757-200PF, 757 -200CB, 767-200, 767-300, 767-300F, 767-400ER
N/A28Bracket026344A2003-8344A2003-8ATSMRO654A0004-366ATSMROBoeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER, 737-8
N/A28Bracket026344A2003-9344A2003-9ATSMRO654A0004-366ATSMROBoeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER, 737-8
View25-11Bracket Assembly232A4398-2232A4398-2ATSMROBoeing 737-600/700/700C/800/900/900ER/MAX 8/ MAX 9
ViewCargo Door Armor
View33Cargo Grille Lense Assembly02215-0712-1215-0712-12ATSMRO15-0712-11Boeing 737-600, 737-700, 737-800, 737-900, 737-900ER
View33Cargo Grille Lense Assembly02215-0712-715-0712-7ATSMRO15-0712-6Boeing 737-600, 737-700, 737-700C, 737-800, 737-900
View25CargoTek Cargo Bay Protection SystemBoeing 737 NG, MAX 8, MAX 9; Airbus A319, A320, A321
View25CargoTek Net Anchor Guards780084-221-201ABoeing 737 NG, MAX 8, MAX 9
View52Cover Plate Assembly019411N2069-8B411N2069-8( )ATSMRO411A2103-XXBoeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER
View52Cover Plate Assembly019411N2069-8B411N2069-8( )ATSMRO411A2103-XXBoeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER
View32Cup Washers002734-17378734-17378ATS734-17360Boeing 777-200, 777-300
View32Cup Washers002734-17379734-17379ATS734-17360Boeing 777-200, 777-300
View32Cup Washers002734-17382734-17382ATS734-17360Boeing 777-200, 777-300
View52EverLatch™ Cargo Door Latch, Aft006H414-53718932-100-501146A6110Boeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER, 737-8
View52EverLatch™ Cargo Door Latch, Fwd006H414-29 718932-111-501146A6110Boeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER, 737-8
View29Filter Cap004732-11613732-11613ATS732-11610-01/-02Boeing 747-2000, 747-200C, 747-200F, 747-300, 747-400, 747-400D, 747-400SP, 747-400SR, 767-200, 767-300, 777-200
View27Fitting Sub-Assembly036113A1350-3113A1350-3ATSMRO113A150-XBoeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER, 737-8
View25Floor Panel Block Assemblies - Lav B016C23302-365-103C23302-365-103ATSMROC23302Boeing 737-300, 737-500, 737-600, 737-700, 737-700C
View25Floor Panel Block Assemblies - Lav B016C23302-367-103C23302-367-103ATSMROC23302Boeing 737-300, 737-500, 737-600, 737-700, 737-700C
View25Floor Panel Block Assemblies - Lav B016C23302-369-103C23302-369-103ATSMROC23302Boeing 737-300, 737-500, 737-600, 737-700, 737-700C
View25Floor Panel Block Assemblies - Lav B016C23302-371-103C23302-371-103ATSMROC23302Boeing 737-300, 737-500, 737-600, 737-700, 737-700C
ViewFOD Protection Intake PlugATS671001Boeing 737 NG
View28Fueling Panel026654A0004-366654A0004-366ATSMRO344A2003-6Boeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER, 737-8
View52FWD Fairing Access Door Latch013 / 017H498-9-163-200H498-9-163-200ATS149A7148Boeing 737-600, 737-700, 737-800, 737-900
View25Galley Guide Assembly, Left Hand021934023-1934023-1ATSMRO983014-1Boeing 737-700
View25Galley Guide Assembly, Right Hand021934023-2934023-2ATSMRO983014-2Boeing 737-700
View25Galley Retainer023984121-1-15984121-1-15ATSMRO980001-1 / 980003-X 980004-1 / 2110004-501Boeing 737-700, 737-800
View52Hold Open Strut Assembly030149A7564-2149A7564-2ATSMRO149A7561-XBoeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER, 737-8
View27Hydraulic Fuse Housing0017-2882-47-2882-4ATS2-8020-XBoeing 737-300, 737-400, 737-500, 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER
View27Hydraulic Fuse Housing0017-2882-57-2882-5ATS2-8020-XBoeing 737-300, 737-400, 737-500, 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER
View27Hydraulic Fuse Housing0017-2882-67-2882-6ATS2-8020-XBoeing 737-300, 737-400, 737-500, 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER
View27Hydraulic Fuse Housing0037-1462-17-1462-1ATS2-7680-1, -2Boeing 737-300, 737-400, 737-500, 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER, 757-200, 757-200PF, 757-300, 767-200, 767-300, 767-300F, 767-400ER, 777-200, 777-200LR, 777-300, 777-300ER, 777F
View53Inner Chord023147A8540U7147A8540U7ATSMRO147A8501Boeing 737-600, 737-700, 737-800, 737-900, 737-8
View53Inner Chord023147A8540U8147A8540U8ATSMRO147A8501Boeing 737-600, 737-700, 737-800, 737-900, 737-8
View25L/H Qtr Turn Retainer0232034100-32034100-3ATSMRO980001-1 / 980003-X 980004-1 / 2110004-501Boeing 737-700, 737-800
View54Lateral Restraint035313A2312-3313A2312-3ATSMRO313A2300Boeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER
View54Lateral Restraint035313A2312-4313A2312-4ATSMRO313A2300Boeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER
View33Lens Assembly01816-0095-116-0095-1ATSMRO34265-8Boeing 737-300, 737-400, 737-500, 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER, 737-8, 757-200, 757-200PF, 757-300, 767-300, 767-300F
View57LH Closeout Skin023116A4411U1116A4411U1ATSMRO116A4008Boeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER
View54Lower T-Chord Frame, Cowl Inlet025314-2162-4314-2162-4ATSMRO314-2100-XBoeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER
View71Lower T-Chord Frame, Cowl Inlet025314-2162-4314-2162-4ATSMRO314-2100-XBoeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER
View53Panel Break Assembly038143A5240-35143A5240-35ATSMRO143A5200Boeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER, 737-8, 737-9
View53Panel Break Assembly038143A5240-36143A5240-36ATSMRO143A5200Boeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER, 737-8, 737-9
View29Pressure Manifold012732-11242732-11242ATS732-11240Boeing 737-300, 737-400, 737-500, 747-100, 747-200, 747-200B, 747-200C, 747-200F, 747SP, 747SR, 757-200, 757-200CB, 757-200PF
View25R/H Qtr Turn Retainer0232034100-42034100-4ATSMRO980001-1 / 980003-X 980004-1 / 2110004-501Boeing 737-700, 737-800
View29Reservoir Depressurization Valve Assembly028HV22-31HV22-31ATS732-11240Boeing 747-400, 757-200, 767-200, 767-300, 777-200
View57RH Closeout Skin023116A4411U2116A4411U2ATSMRO116A4008Boeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER
View53Shield Assembly034143A8126U21143A8126U21ATSMRO143A8126Boeing 737-700, 737-700C, 737-800, 737-900, 737-900ER, 737-8, 737-9
View53Shield Assembly034143A8126U31143A8126U31ATSMRO143A8126Boeing 737-700, 737-700C
View57Stiffener, Wing Center Section021111A1308U15111A1308U15ATSMRO111A1000Boeing 737-600, 737-700, 737-700IGW, 737-800, 737-900, 737-900ER
View54Upper T-Chord Frame, Cowl Inlet025314-2162-3314-2162-3ATSMRO314-2100-XBoeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER
View71Upper T-Chord Frame, Cowl Inlet025314-2162-3314-2162-3ATSMRO314-2100-XBoeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER

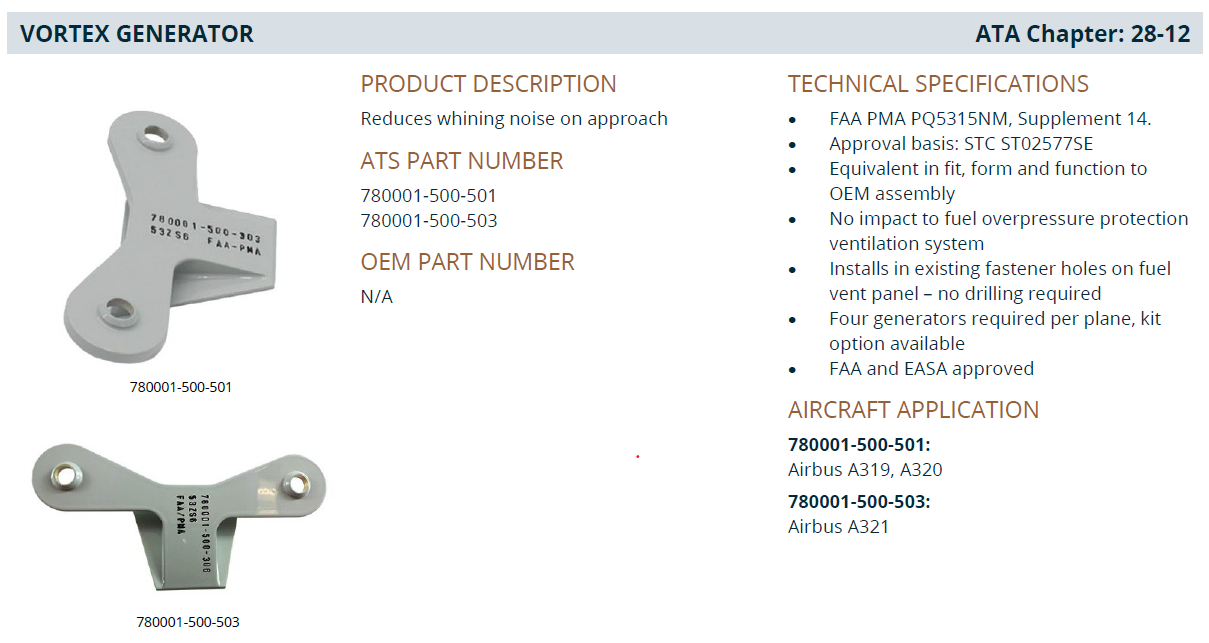

View57Vortex Generator Installation Kit 014N/A780001-500-501D281500Airbus A319, A320
View57Vortex Generator Installation Kit 014N/A780001-500-503D281500Airbus A321
View28Vortex Generator Installation Kit 014N/A780001-500-501D281500Airbus A319, A320
View28Vortex Generator Installation Kit 014N/A780001-500-503D281500Airbus A321
View57Wiggle Plate Assembly037115A2781-3115A2781-3ATSMRO115A2713-XBoeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER, 737-8, 737-9
View57Wiggle Plate Assembly037115A2781-4115A2781-4ATSMRO115A2713-XBoeing 737-600, 737-700, 737-700C, 737-800, 737-900, 737-900ER, 737-8, 737-9
View57Wiggle Plate Assembly LH033115A2781-13115A2781-13ATSMRO113A9300-XBoeing 737-600, 737-700, 737-800, 737-900ER
View57Wiggle Plate Assembly RH033115A2781-14115A2781-14ATSMRO115A2001-XBoeing 737-600, 737-700, 737-800, 737-900ER
